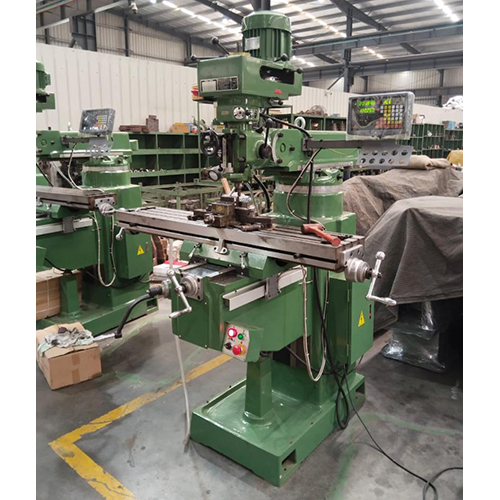

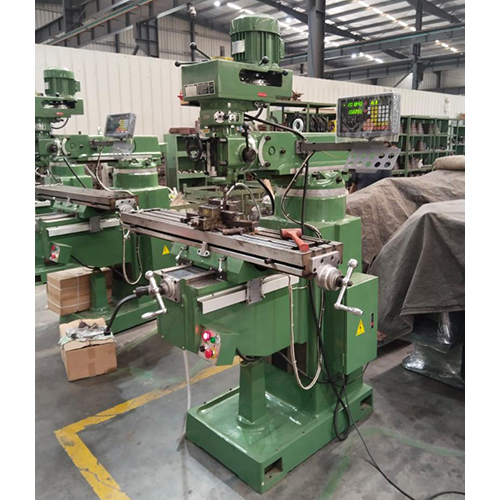

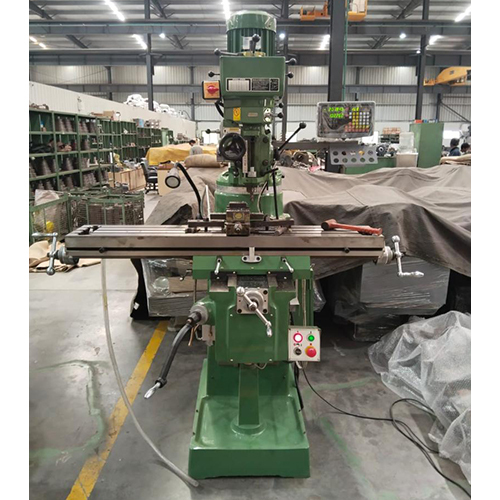

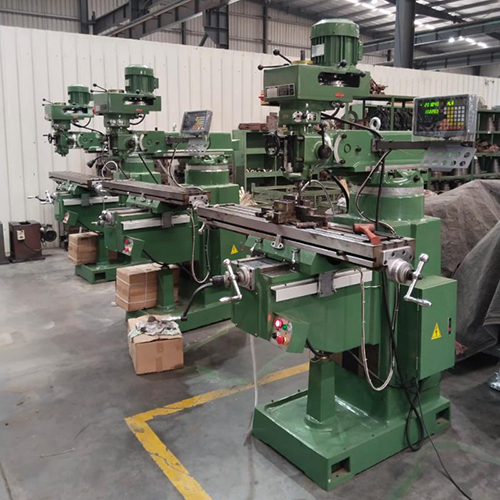

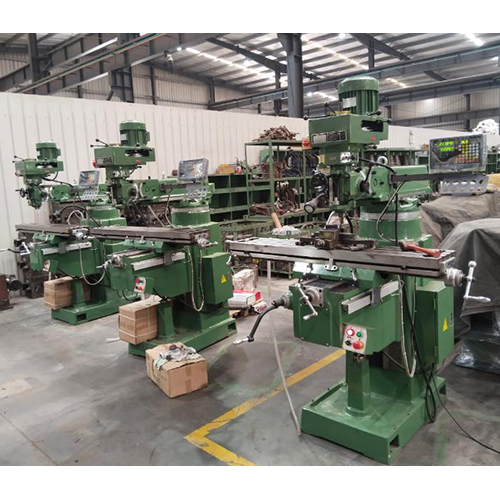

Vertical Turret Head Milling Machine

Get a Price/Quote

Vertical Turret Head Milling Machine Specification

Model
VTH-1370

Rotation
Head Swivel 90

Product Type
Vertical Turret Head Milling Machine

General Use
Metal Cutting and Shaping

Material
Mild Steel

Type
Vertical

Capacity
Heavy Duty

Weight (kg)
1800 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual Mechanical Controls

Table Size
1370 mm x 254 mm

Table Slide Way
Dovetail

Magnetic Chuck Size
Optional (not standard on milling machines)

Floor Space
1800 mm x 1700 mm

Spindle Speed
604300 RPM (variable)

Power
3 HP

Voltage
415 V

Dimension (L*W*H)
1800 mm x 1700 mm x 2050 mm

Feature
Swivelling Head, Precision Table Movement, Robust Construction

Color
Blue-Grey

Coolant Pump
Yes

Motor Power Feed
0.75 HP

Longitudinal Traverse (Table)
800 mm

No. of T-slots
3

T-slot Size
16 mm

Taper of Spindle
ISO 40

Cross Traverse (Table)
330 mm

Table Load Capacity
400 kg

Quill Feed Range
0.04-0.14 mm/rev

Vertical Traverse (Knee)
400 mm

Working Light
Yes

Spindle Travel
127 mm

Max Distance Spindle to Column
600 mm

Max Distance Spindle to Table
420 mm

Phase
3 Phase

Vertical Turret Head Milling Machine Trade Information

Main Export Market(s)
Asia, Central America, North America, Western Europe, Africa, Australia, South America, Eastern Europe, Middle East

About Vertical Turret Head Milling Machine

STANDARD ACCESSORIES :

ONE SHOTLUBRICATION
DRAW BAR
TOOLBOX
FRONT & REAR CHIP GUARD
ELECTRICAL PANEL
2-AXIS DRO WITH SCALE
MILLING MACHINE VICE
COOLANT PUMP WITH SPOUL
CLAMPING KIT
FRONT OPERATING PANEL
MACHINE LAMP
COLLET SET

Table size	1370 x 254 mm
X - Axis cross tray	800 mm
Y - Axis longitudinal travel	405 mm
Z - Axis vertical travel	390 mm
T - Slot	3/16/ mm/ 65 mm
Max load on table	300 kg
Spindle taper	RB/ NT 30
No. of spindle speed	16
Range of spindle speed	66-4540 RPM
Quill diameter	85.725 mm
Head movement	-/+ 90 deg
Head tilt	-/+ 45 deg
Electrical	3 hp
Dimension (Lx Wx H)	1850x1650x2150 mm
Weight	1350 kg

Precision Heavy-Duty Performance

With robust dovetail slide ways and a weight capacity of 400 kg, the VTH-1370 delivers high-precision cutting and shaping. Its swiveling head and variable spindle speeds allow flexibility in tackling diverse workpieces, ensuring consistently accurate results for metalworking professionals.

User-Friendly Manual Controls

Despite its sizable table and powerful 3 HP motor, the VTH-1370 remains easy to operate. Manual mechanical controls, a straightforward feed system, and clearly marked calibrations help machinists perform complex cuts and traverses with confidence and efficiency.

Built for Endurance and Versatility

Constructed from mild steel, this vertical turret milling machine is engineered for longevity. Its versatile table size, quill feed range, coolant pump, and working lights make it ideal for metal fabrication shops requiring heavy-duty, versatile, and reliable equipment.

FAQs of Vertical Turret Head Milling Machine:

Q: How do I operate the travel controls on the VTH-1370 turret head milling machine?

A: The VTH-1370 features manual mechanical controls for all travels. The tables longitudinal (800 mm), cross (330 mm), and vertical (400 mm) traverses are operated using dedicated handwheels, while the quill feed (0.040.14 mm/rev) can be engaged for fine vertical movements.

Q: What materials can this milling machine process, and is it suitable for heavy-duty tasks?

A: This machine is designed to cut and shape a range of metals, especially mild steel, making it ideal for heavy-duty industrial tasks. It accommodates workpieces up to 400 kg, thanks to its rigid construction and robust table design.

Q: When should I use the swiveling head feature and what are its benefits?

A: Use the swiveling head, which rotates 90, when angled cutting or complex contouring is required. This feature enhances the machines versatility, allowing you to reach challenging angles without repositioning the workpiece.

Q: Where can the VTH-1370 be installed, and what is its recommended floor space?

A: The machine should be installed on a solid, level surface in a well-ventilated workspace. It requires a minimum floor space of 1800 mm x 1700 mm for safe operation and maintenance access.

Q: What is the process for changing spindle speeds on this milling machine?

A: Spindle speeds, ranging from 60 to 4300 RPM, are adjusted via the manual gear selector on the control panel. Choose the correct speed based on your material and cutting operation for optimal results and tool longevity.

Q: What are the benefits of the integrated coolant pump and working light?

A: The built-in coolant pump ensures continuous lubrication and cooling during machining, reducing tool wear and thermal distortion. The working light improves visibility, supporting precision and user safety during operation.
